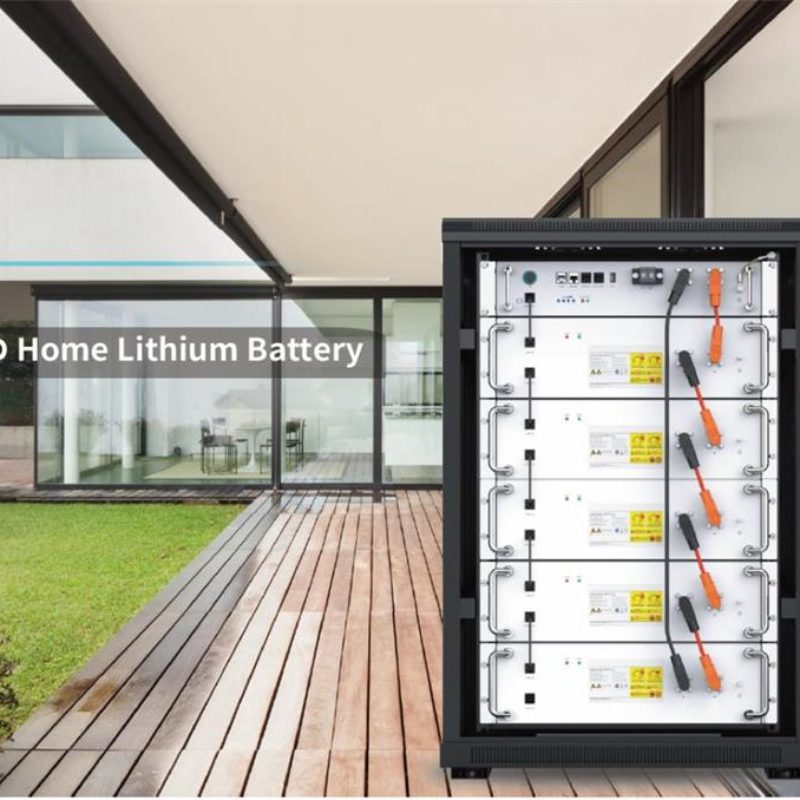

Simple 3U rack battery packs, built-in LFP battery with a high-security class, support a continuous discharge with a high rate and a long service life. These modular, scalable rack-mount batteries are designed for private and commercial applications, both network-bound and independent of the network. For additional memory requirements, you can easily set up connections for several units with up to 32 parallel units.
Safe, flexible, high compatibility and scalability, cabinet or holder installations are available.
Characteristics:
• RS485/CAN
• Installation: frame -assembled
• tailored to different global top inverter stamps
• High-security standard of the LFP (LIFEP04) cell
• Long-lived battery design supported by efficient compensation technology
• Extended BMS protection functions
The rack or cabinet solar battery systems can be used for mesh-coupled solar backup systems for households, network-independent power supply, telecommunications, solar USV, and backup systems.
| 模块化类型 | BESS-HV27U |
|---|---|
| 总能量[kWh] | 2.7 |
| 可用的能量[kwh] | 2.43 |
| 标称电压[V] | 102 |
| 操作电压区域[V] | 80-116.8 |
| 标称能力[AH] | 27 |
| 最大限度。 充电/放电流[A] | 30 |
| 排出深度[％] | 90 |
| 循环寿命[90％DOD] | 6000个周期/10年 |
| 数据通讯 | CAN/RS485 |
| 名义温度 | 0 C至45 C |
| 加热功能温度 | -20 C至45 C |
| 粉丝功能温度 | 0 c至55 c |
| 湿度 | 4％至100％（冷凝） |
| 高度 | 低于2000 m |
| 住房的保护类型 | IP20 |
| 证书 | UL1973/IEC62619/UN38.3 |
| 最大限度。 相似或系列的数量 | “ Max5模块系列，最大4套并联” |
| 安装模式 | 自由架 |
| 主控制尺寸[B*H*TMM] | 430*400*88mm |
| 电池模块的尺寸[B*H*TMM] | 430*600*130mm |
| 主要税号[kg] | 10 |
| 电池模块的重量[kg] | 35 |
